WIRELESSLY CONTROL YOUR EFFECTS PEDALS.

ATTACH WIRELESS CONTROLLER ANYWHERE.

GET MORE OUT OF YOUR EFFECTS.

Airpatch is a wirelessly controlled effects loop switch. Simply choose which effects pedals you would like to control and connect them between the Airpatch send and return ports. Activate an effects loop containing any combination of effects with just a single press of the controller.

WIRELESS

2.4 GHz wireless signal

50+ feet (15 meters) of range

AUDIO PORTS

Single channel effects loop switch with ¼ inch mono audio connectors for Input, Output, Send and Return.

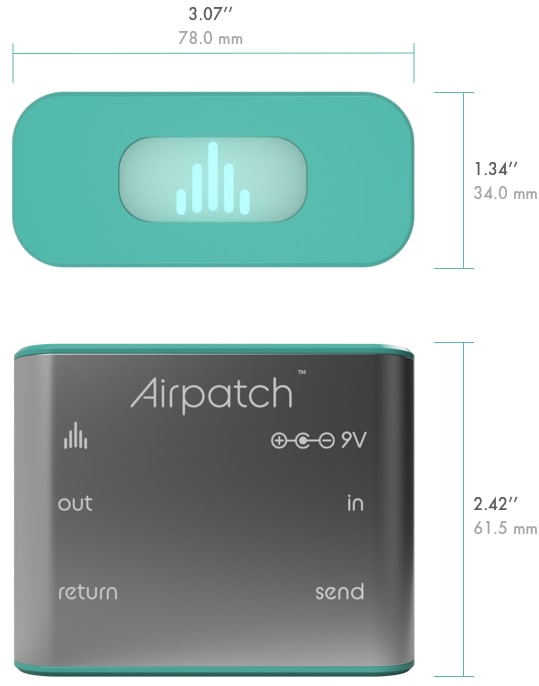

ENCLOSURE

Super compact and fits easily on any board. Sleek aluminum case with tri-color LED and light diffuser window. Audio jacks are located on the sides. Change modes and pair your controller with just one switch.

Single button wireless controller puts your effects at your fingertips. Uses soft silicone switch and magnetic charging.

POWER

Loop switch uses industry standard 9V, 2.1mm center negative barrel connector. Compatible with standard pedal board power systems (power supply not included).

BATTERY

Lithium Ion rechargeable battery for wireless controller. Battery lasts for up to a week on a single charge.

24 inch USB charging cable included.

Quick charge of 45 minutes. Magnetic connection snaps securely to the button for charging.

GUARANTEE

If you are not satisfied with this product for any reason, you can return it and get your money-back guaranteed for up to 90 days. Please refer to our return policy for more information.

Additionally, we offer a replacement for any Airpatch with a manufacturing defect for up to 12 months after purchase.

We want you to have the best experience possible. If you need assistance, our team will help you set up your Airpatch. Please email us at contactus@aviateaudio.com for all support requests.

Latch Mode: Works just like your pedals. Press the button to turn them on, press again to turn them off. Connect multiple pedals in the effects loop to eliminate back and forth 'tap dancing' experienced when activating multiple effects at once!

Momentary Mode: Momentary mode is the game changing feature that will wow other musicians and audiences at shows. With responsive control, your effects are activated by pressing and holding the button. Use expressive delays and choruses, add bursts of distortion, use Airpatch like a whammy bar by connecting to a pitch shifter. Leave the effects loop empty and Airpatch will function like a killswitch. The options are endless! How will you use it?

Reverse Momentary Mode: Works just like momentary mode, but your effects default to 'on'. The effects loop is bypassed for as long as the button is pressed.

Easy mode selection: Change modes with a a press of the single button located on the Airpatch dock. A three color LED indicator will indicate which mode you are using.

Pairing

Pairing your controller is easy. Hold down the mode selection button on the dock for three seconds and the light will blink. Press the wireless controller you would like to pair and you've paired it to the dock. Our pairing feature is useful if you want to put a button on each of your guitars.

Q: Is Airpatch compatible with all effects pedals?

A: Airpatch is compatible with all effects pedals using industry standard instrument level signals. Airpatch has been tested with most major brands and designs. Airpatch is compatible with ‘mono’/ monophonic audio connections only (not stereo). Overloading the Airpatch Input may cause damage to the electronics. Audio signal levels going into the Airpatch input should be kept below 9V (peak).

Results may vary depending on the design of the pedal you use. If you experience an issue please let us know and describe which effects pedal combination was used. Airpatch is compatible with both true bypass and buffered bypass pedals.

Q: How many pedals can I connect?

A: Airpatch uses a single channel effects loop. You may connect as many pedals in the effects loop as you want. All pedals in the loop will be activated and bypassed together using the single-button wireless controller. Airpatch can be connected anywhere in your signal chain allowing you to connect pedals before and after the effects loop as well.

Q: Will there be interference with other wireless devices?

A: No. Airpatch is compliant with FCC regulations and has been designed and tested to ensure that it will not disrupt other wireless devices or be disrupted by other wireless devices (including wireless guitar systems, bluetooth devices, phones, etc.)

Q: Is the attachment system compatible with my instrument?

A: Yes. The Airpatch controller mounting plate is designed to mount securely on any flat surface using our proprietary removable, reusable adhesive pad. The wireless controller clips into the mounting plate. The connection is very strong and you will not need to worry about it falling off or being removed by accident.If your instrument does not have a flat surface to locate the controller, or your application demands a different solution please reach out and we will work with you to develop a mounting plate that suits your application. Stay tuned for new mounting plate options for instrument straps and more.Q: Will the adhesive pad mark or damage my finish?A: We use a specialized adhesive pad that was developed specifically for finish friendly applications. The adhesive pad has been tested on Nitrocellulose, Polyurethane and Polyester guitar finishes with no effect on the finish whatsoever after being fastened to the instrument for months at a time.Please ensure you follow the assembly instructions when applying the adhesive pad. The permanent side sticks to the controller mounting plate and the finish friendly/ reusable side will adhere to your instrument or playing surface. If the adhesive pad gets dirty simply wash it with warm, soapy water until clean and let it dry in a clean place. Once dry, the pad will be clean and the adhesion will be preserved.
